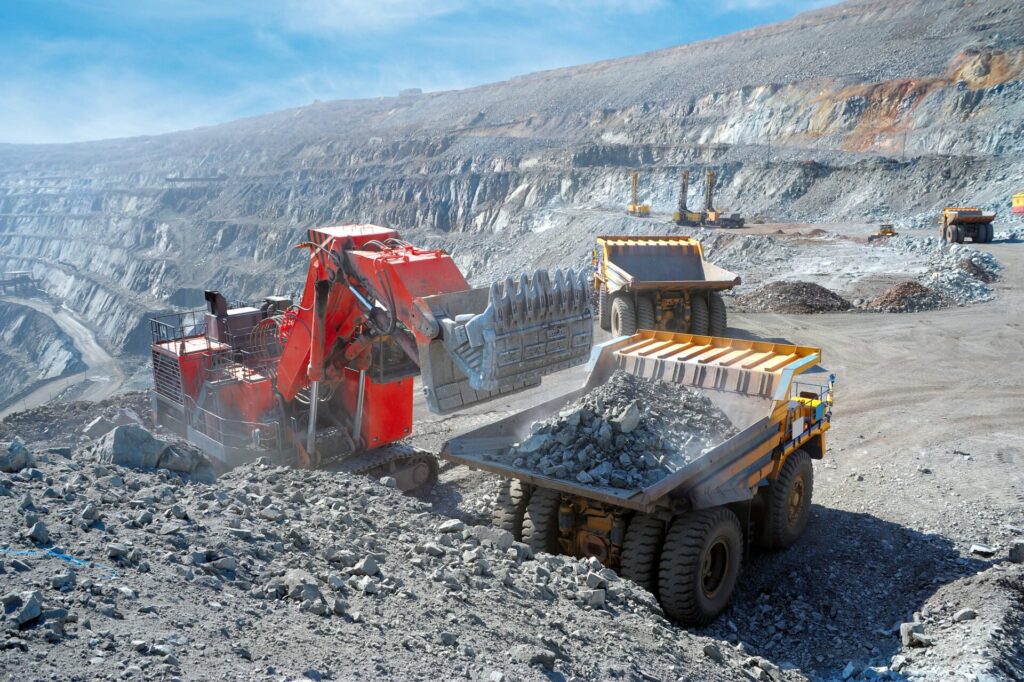

Loading & Hauling Process Optimization In Iron Ore Mining

Loading & Hauling Process Optimization in Iron Ore Mining Introduction In iron ore mining operations, the efficiency of loading and hauling processes is crucial for overall productivity and cost management. These processes involve transferring large volumes of ore from excavation sites to processing facilities. Optimizing these processes can lead to significant improvements in throughput, reduced

Loading & Hauling Process Optimization in Iron Ore Mining

Introduction

In iron ore mining operations, the efficiency of loading and hauling processes is crucial for overall productivity and cost management. These processes involve transferring large volumes of ore from excavation sites to processing facilities. Optimizing these processes can lead to significant improvements in throughput, reduced cycle times, and better resource utilization. Given the scale and complexity of mining operations, even small improvements in loading and hauling efficiency can result in substantial economic benefits and reduced environmental impact.

The Challenge

Loading and hauling processes in iron ore mining operations are critical to maintaining productivity and managing costs. These operations involve complex coordination between heavy machinery, which are subject to demanding conditions and intensive use. Key challenges are: Throughput Variability: Inconsistent ore loading and hauling per cycle can lead to fluctuations in production rates. Variability in throughput disrupts production schedules, making it difficult to meet targets and maintain a steady workflow. High Idle Times: Prolonged periods of inactivity for both excavators and haul trucks, often due to inefficient scheduling, coordination issues, or equipment downtime, lead to significant productivity losses and increased operational costs. Idle times can also cause engine damage, as engines are designed to run at optimal speeds and temperatures. Prolonged idling can result in incomplete combustion of fuel, leading to carbon buildup in the engine, reducing efficiency, increasing emissions, and potentially causing severe engine damage over time. Additionally, idle machinery components such as the engine, transmission, and hydraulics experience uneven wear and tear, reducing their lifespan and increasing maintenance costs. When operators attempt to compensate for lost productivity by pushing the machinery harder, it leads to operational strain, overheating, increased fuel consumption, and accelerated wear and tear. Fuel inefficiency during idling further escalates operational costs, while the frequent maintenance requirements due to idle times add to downtime and expenses. Fuel Consumption and Operational Costs: High fuel consumption due to inefficient operations escalates costs and increases carbon emissions. Excessive fuel usage affects both the financial and environmental footprint of the mining operation. Cycle Time Inefficiencies: Delays in loading and unloading, poor route planning, and bottlenecks in the process extend cycle times. Inefficient cycle times slow down the entire mining process, reducing productivity and increasing operational costs. Maintenance Downtime: Unexpected equipment breakdowns and maintenance needs halt operations, causing significant delays. Unplanned maintenance leads to operational disruptions and increased costs due to emergency repairs and potential overtime pay for maintenance staff. Safety and Compliance: Ensuring safety and regulatory compliance in the operations of heavy machinery is critical. Non-compliance can result in accidents, legal issues, and fines, jeopardizing both the safety of the workforce and the financial stability of the mining operation. Coordination between Excavators and Haul Trucks: Poor coordination between excavators and haul trucks leads to suboptimal performance. Misalignment in timing and location causes delays and inefficiencies, increasing idle times and reducing throughput. Data Integration Challenges: Integrating data from multiple sources, such as sensors, control systems, and manual logs, can be complex. Poor data integration can lead to incomplete or inaccurate performance assessments, hindering effective decision-making.

The Solution: XMPro AO Platform for Loading & Hauling Process Optimization in Iron Ore Mining

XMPro's solution is meticulously designed to tackle the specific challenges of managing loading and hauling efficiency in iron ore mining operations. It delivers superior operational efficiency with a suite of real-time monitoring, predictive analytics, and operational insights tools. Sensor Data Integration & Transformation Utilize IoT sensors to monitor critical components of both excavators and haul trucks, capturing data on operational status, idle times, and maintenance events. This continuous visibility is pivotal for proactive operational management, ensuring that equipment is used optimally and maintained before issues escalate. Predictive Analytics Analyze sensor data with machine learning algorithms to identify patterns indicative of wear or impending failure. Leverage historical performance data to improve predictive models and maintenance strategies, ensuring informed decision-making and strategic planning. Predictive analytics help foresee potential equipment failures and schedule maintenance proactively, minimizing unplanned downtime. Real-Time Maintenance Alerts Provide real-time alerts to maintenance teams when potential issues are detected, enabling proactive repairs and minimizing unplanned downtime. This ensures continuous operation and extends equipment lifespan, addressing issues before they lead to significant disruptions. Customizable Dashboards Display critical KPIs such as fuel consumption per ton, CO2 emissions, operational cost per ton, and utilization rates. Customizable dashboards offer clear visuals of excavator and haul truck health and performance, allowing operators to monitor and plan maintenance activities effectively. Detailed cycle time analysis helps pinpoint inefficiencies and bottlenecks in the loading and hauling process. Operational Insights Provide actionable insights to reduce idle times, optimize fuel consumption, and enhance operator performance. Recommendations for maintenance scheduling, operational adjustments, and efficiency improvements ensure improved asset utilization and operational efficiency. By identifying and mitigating causes of idle times, and analyzing cycle times for both loading and hauling, the solution helps streamline operations and improve overall efficiency. By implementing XMPro AO Platform’s real-time monitoring and analytics platform, iron ore mining operations can achieve substantial improvements in loading and hauling efficiency, leading to higher productivity, reduced costs, and enhanced operational performance.

Discover XMPro's Solution For Loading & Hauling Process Optimization in Iron Ore Mining

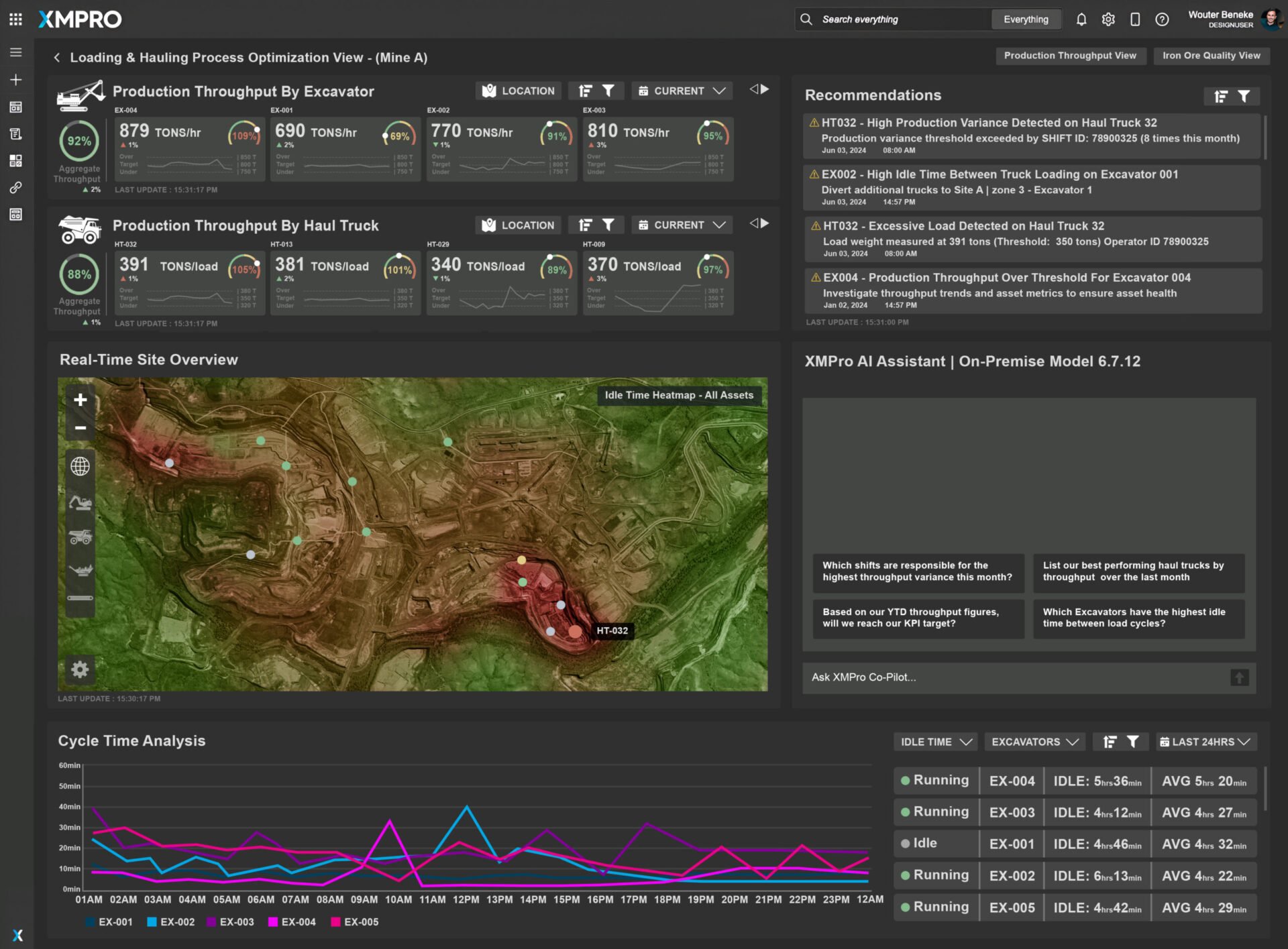

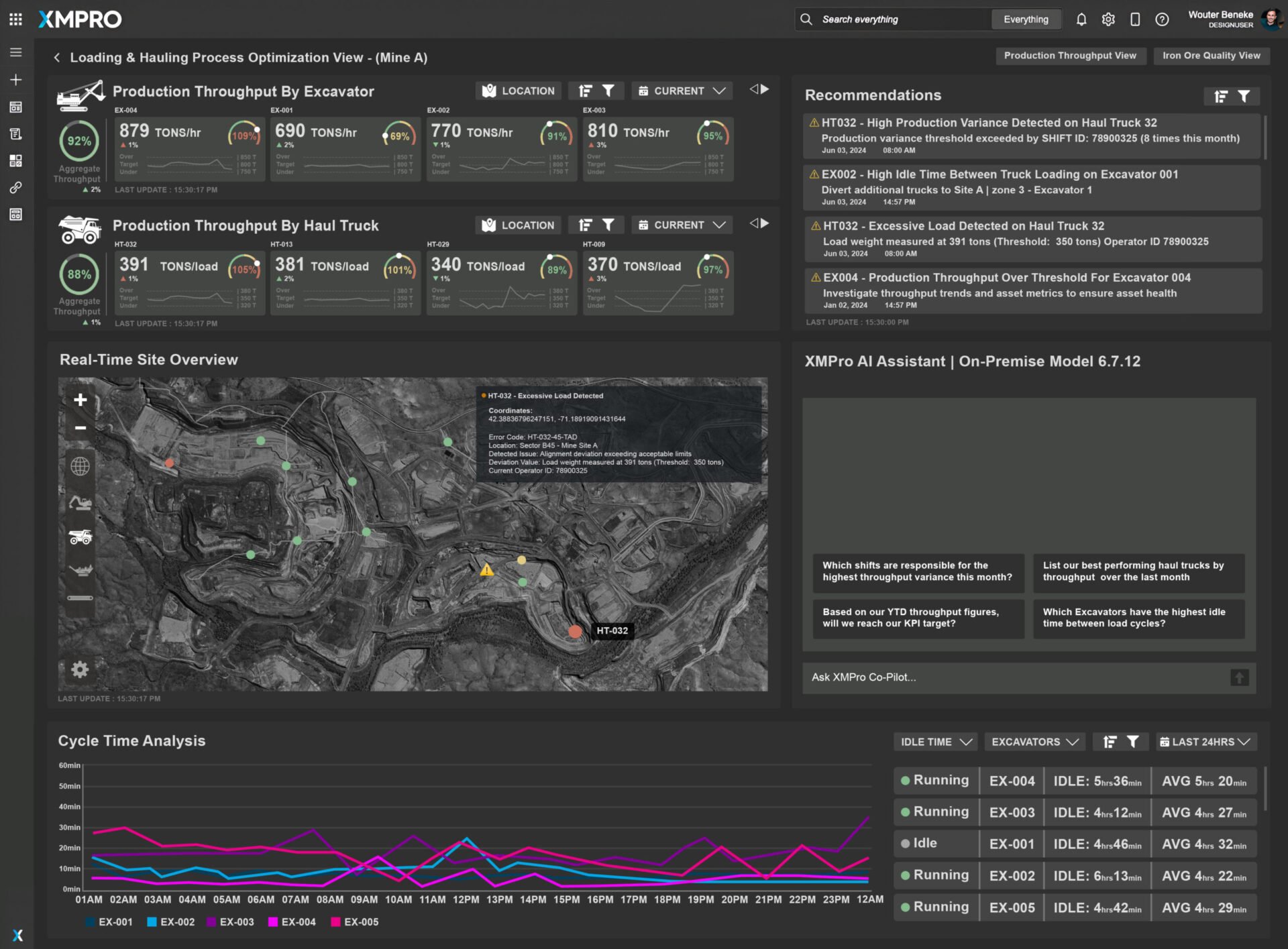

Figure 1: Loading & Hauling Process Optimization View - Mine A The Loading & Hauling Process Optimization View is instrumental for monitoring and optimizing the operational efficiency of loading and hauling activities in iron ore mining operations. This dashboard provides critical insights into various performance metrics, enabling effective management and optimization of these activities to enhance productivity and reduce operational costs. Production Throughput by Excavator The dashboard displays throughput metrics for each excavator, including actual versus target throughput in tons per hour. This helps manage productivity by identifying deviations from targets and ensuring optimal asset utilization. For example, consistently falling short of targets may indicate the need for maintenance or operational adjustments. Production Throughput by Haul Truck Throughput metrics for haul trucks are also shown, detailing actual tons per load compared to target values. This data assists in managing load efficiency and identifying discrepancies. High variance in load weights might suggest issues with loading accuracy or truck capacity utilization. Real-Time Site Overview The real-time site overview provides a visual representation of the mining site, including the locations of all assets and their current status. This helps in monitoring the overall operation and improving coordination. Identifying areas with high idle times can lead to better planning and resource allocation. Cycle Time Analysis Analyzes the cycle times for both excavators and haul trucks, presenting data on how long each phase of the cycle takes. This analysis helps pinpoint inefficiencies and bottlenecks in the loading and hauling process. Longer-than-average cycle times may indicate delays in loading or unloading, poor route planning, or equipment issues. Idle Time Analysis Idle time analysis provides a breakdown of idle times for different assets, highlighting the average idle time over the last 24 hours. This helps identify causes of idle times and enables actions to reduce these periods, improving overall asset utilization. High idle times could be due to poor scheduling, coordination issues between loading and hauling, or equipment downtime. Recommendations and Alerts The dashboard includes actionable recommendations and real-time alerts based on data analysis. These provide insights into potential issues and suggest corrective actions. For example, alerts for high idle times or excessive load weights prompt immediate operational adjustments to mitigate these issues. XMPro AI Assistant Queries XMPro AI Assistant generates further insights by querying real-time and historical data. These queries can address questions such as which shifts are responsible for the highest throughput variance or which excavators have the highest idle times between load cycles. This aids in proactive decision-making and continuous improvement.

Key Benefits

Increased Productivity By identifying and reducing idle times, optimizing cycle times, and ensuring efficient load distribution, overall productivity is significantly enhanced. Cost Savings Lower operational costs are achieved through reduced idle times, optimized fuel consumption, and improved cycle efficiency. This leads to significant cost savings. Enhanced Equipment Longevity Proactive maintenance and operational insights extend the lifespan of both excavators and haul trucks, reducing the need for frequent replacements. Environmental Compliance Improved fuel efficiency and reduced emissions contribute to better compliance with environmental regulations and sustainability goals. Safety and Compliance Enhanced visibility into operations and proactive maintenance help maintain safety standards and regulatory compliance.

Figure 2: Loading & Hauling Process Optimization View - Mine A ( idle time heatmap) Real-Time Site Overview with Idle Time Heatmap The real-time site overview with the idle time heatmap provides a visual representation of the mining site, including the locations of all assets and their current status, with a specific focus on idle times. The heatmap highlights areas with high idle times, allowing for easy identification of inefficiencies. This visualization helps in monitoring overall operations and improving coordination. For instance, areas with concentrated idle times can be targeted for process improvements or resource reallocation.

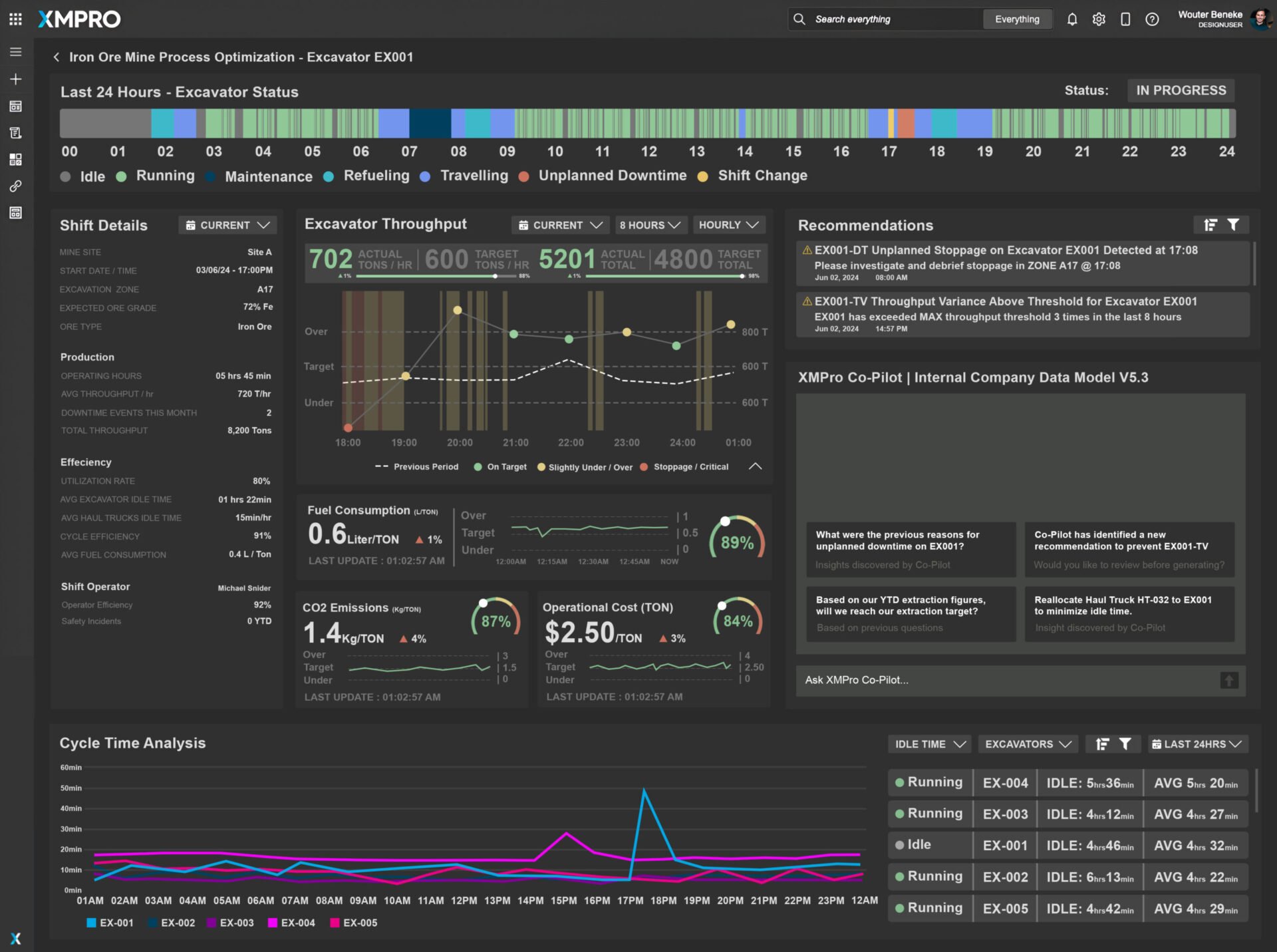

Figure 3: Drilldown Asset Analysis View – Mobile Asset Process Optimization

The Drilldown Asset Analysis View is crucial for monitoring and optimizing the operational efficiency of mobile assets such as excavators, haul trucks, and mobile crushers in iron ore mining operations. This dashboard provides detailed insights into various performance metrics, enabling effective management and optimization of these assets to enhance productivity and reduce operational costs. Mobile Asset Status Timeline The visual representation of the status of mobile assets over the last 24 hours, including running, idle, maintenance, refueling, traveling, unplanned downtime, and shift changes, identifies patterns of inefficiency and informs better scheduling and resource allocation. For example, frequent idle periods may highlight issues with coordination or poor shift planning. Shift Details Detailed shift information, such as mine site, excavation zone, expected ore grade, and production metrics like operating hours and average throughput, offers a snapshot of current operations, aiding in real-time decision-making and performance tracking. Insights can include recognizing shifts with higher productivity or identifying zones with more frequent downtime. Mobile Asset Throughput Throughput metrics display actual versus target throughput in tons per hour for mobile assets, helping to manage productivity, identify deviations, and ensure optimal asset utilization. This can reveal whether the equipment is consistently underperforming or exceeding targets, prompting adjustments to operational strategies. Fuel Consumption Monitoring fuel consumption and CO2 emissions for mobile assets provides insights into fuel efficiency and environmental impact, essential for reducing operational costs and achieving sustainability goals. For instance, unexpected increases in fuel consumption might indicate engine inefficiencies or the need for maintenance. Operational Cost The operational cost per ton metric offers a clear view of financial efficiency, highlighting cost-saving opportunities. Insights might include identifying high-cost periods and correlating them with specific operational activities or maintenance events. Cycle Time Analysis Cycle time and idle time analyses pinpoint inefficiencies in the excavation, loading, and hauling processes, addressing issues related to planning and improving overall efficiency. For example, longer cycle times may suggest bottlenecks in the process or delays in asset availability. Idle Time Analysis Idle time analysis highlights the average idle time over the last 24 hours for different mobile assets, identifying causes of idle times and enabling actions to reduce idle periods and improve asset utilization. This can reveal if specific assets are idling more frequently, suggesting targeted improvements. Recommendations and Alerts The dashboard provides actionable recommendations and real-time alerts based on data analysis, offering insights into potential issues and suggesting corrective actions. For example, an alert for high fuel consumption could lead to immediate checks and preventive measures. XMPro AI Assistant Queries XMPro AI Assistant queries generate further insights, aiding proactive decision-making and continuous improvement. These queries might include analysis of reasons for unplanned downtime or suggestions for improving operator performance based on historical data.

Key Benefits

Increased Productivity By identifying and reducing idle times, optimizing throughput, and addressing inefficiencies, productivity is significantly enhanced. For example, aligning shift changes with optimal operational periods can boost overall productivity. Cost Savings Lower fuel consumption, reduced maintenance costs, and improved operational efficiency lead to substantial cost savings. Identifying and mitigating periods of high operational cost can significantly reduce expenses. Enhanced Equipment Longevity Proactive maintenance and operational insights extend the lifespan of mobile assets, reducing the need for frequent replacements. This ensures that equipment is maintained before issues become critical. Environmental Compliance Improved fuel efficiency and reduced emissions contribute to better compliance with environmental regulations and sustainability goals. Monitoring CO2 emissions helps maintain adherence to regulatory standards. Safety and Compliance Enhanced visibility into operations and proactive maintenance help maintain safety standards and regulatory compliance. Ensuring that mobile asset operations are within safe parameters reduces the risk of accidents. By leveraging the Drilldown Asset Analysis View for mobile assets, mining operations can achieve enhanced visibility into their processes, leading to improved productivity, cost savings, and optimized resource utilization.

Why XMPro AO Platform for Mining Plant Operations?

XMPro's AO Platform is expertly devised for the intricate challenges faced in the process optimization and asset performance management of mobile assets within the mining industry. Here’s the transformation it brings:

Advanced Intelligent Digital Twin Modeling:

XMPro AO Platform constructs sophisticated digital twins, reflecting the detailed operations of mining equipment. It allows comprehensive performance analysis under varied conditions, vital for operational optimization.

Advanced Sensor Data Integration & Transformation:

Real-time sensor data across mobile assets offer critical insights into performance metrics like vibration, load capacity, and engine status, which are essential for detecting early signs of potential failures and maintenance needs.

Predictive Analytics for Performance Enhancement:

Utilizing advanced analytics, XMPro AO Platform predicts potential asset failures, enhancing operational parameters and enabling preventive adjustments, thereby ensuring continuous mining operations with minimized downtimes.

Maintenance Scheduling Optimization:

Performance data drives XMPro AO Platform's maintenance scheduling, transforming the approach from reactive to proactive, optimizing the maintenance cycle for various assets, and significantly reducing breakdowns.

Real-Time Monitoring and Predictive Alerting:

Real-time monitoring and predictive alerting are critical components of XMPro's AO Platform for managing mobile assets within the mining industry. This ensures each mobile asset, from haul trucks to dozers, functions within the optimal parameters, thus enhancing efficiency and reducing reliance on manual intervention.

Configurable and Interactive Dashboards:

XMPro provides configurable dashboards that offer real-time insights into the health and performance of equipment across all dairy processing plants. These dashboards are designed to be interactive, enabling detailed scrutiny of specific operational aspects and supporting centralized management decisions.

Scalability and Flexibility – Start Small, Scale Fast:

Designed to accommodate dairy operations of any scale, XMPro's modular architecture allows for seamless integration and adaptability. This scalability ensures that mining plants can efficiently manage operations as they expand or adapt to changing market demands.

Enhanced Safety & Operational Efficiency:

XMPro boosts operational safety by identifying potential hazards and inefficiencies in the processing line, ensuring that all equipment operates within safe and optimal parameters. This contributes to a safer working environment and more efficient production processes.

XMPro Blueprints - Quick Time to Value:

Offering quick time-to-value, XMPro Blueprints facilitate rapid deployment of intelligent operations solutions across mining operations. These templates are built on industry best practices, ensuring that plants can quickly realize the benefits of digital transformation.

XMPro AO Platform caters to the predictive maintenance needs of the mining industry's mobile assets with a suite that promises comprehensive, predictive, and integrated solutions, driving efficiency and safety across operations.
